El Capistan V2

Tape Echo

Plug in, play a note or chord, and you feel it: All the warm, saturated, distinctive qualities and subtle nuances of vintage tape echo combine to instantly create an unmistakable atmosphere.

Everything from classic slapback echoes to psychedelic space explorations have stunning richness and depth, responding to each note and knob turn in a musically inspiring way.

Turn up the repeats for organic delay feedback with just the right amount of grit. Dial in some spring reverb to further enhance the sense of space. Effortlessly create multi-layered ambient soundscapes with the tape-style sound on sound looper.

Transform your pedalboard into the inspiration machine it was meant to be.

Echo Through Eternity.

Classic single-note slapback. Rhythmic multi-head delays. Ambient, washed-out echoes that dissolve into waves of noise. El Capistan’s three different tape machines provide a huge variety of vintage delay sounds, offering unique functionality depending on what the Mode switch is set to. The fixed tape head machine creates a classic delay effect with tape speed controlled via the Time knob. The Mode switch selects between three playback heads, each a specific distance from the record head for a specific delay interval. Choose between: (A) short delay with 1/16 note tap tempo, (B) medium delay with dotted 1/8 note tap tempo, and (C) long delay with 1/4 note tap tempo.  The multi tape head machine has the same three playback heads as the fixed version, but simultaneously uses two of the three playback heads to create rhythmic delays that groove with one another. The Mode switch selects which two playback heads are active: (A) Heads 1 and 2 are active.(B) Heads 2 and 3 are active. (C) Heads 1 and 3 are active. The Time knob adjusts tape speed. The single tape head machine changes things up by running the tape at a fixed speed while the Time knob sets the delay time by adjusting the position of a sliding record head. This tape machine also features a sound on sound looper. The Mode switch offers the following options: (A) Tape motor runs at double speed for higher fidelity with shorter delay times. (B) Tape motor runs at normal speed for lower fidelity with longer delay times. (C) Sound on Sound mode for tape-style looping with instant tape splice, bulk erase, and two tape speeds.

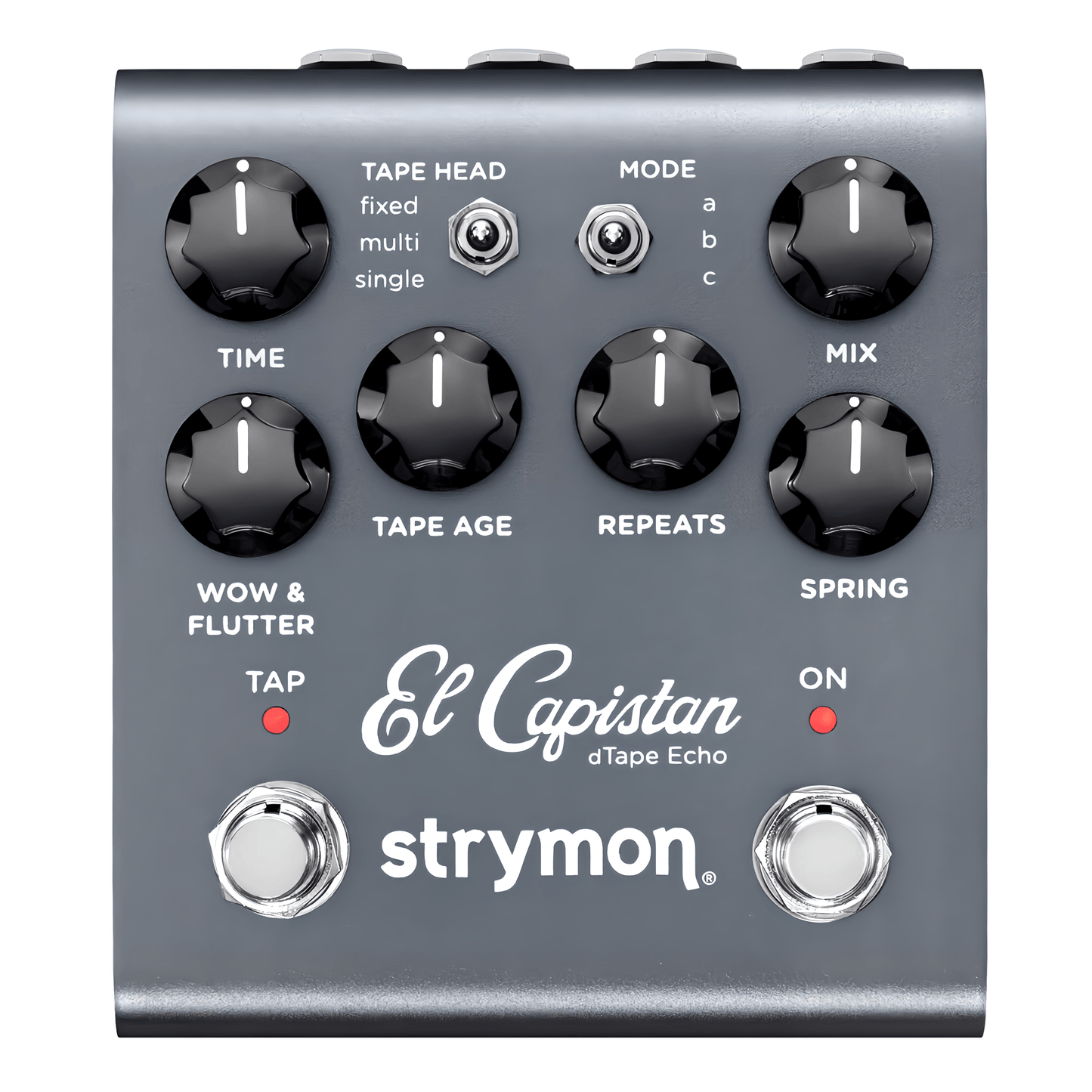

Take Control.

A full suite of traditional delay controls make El Capistan a practical addition to any board.  Set your preferred delay time using the dedicated Time knob, and dial in everything from snappy slapback delays to long, spacious echoes. Need to dial it on the fly? Use the dedicated Tap switch to lock in to your desired tempo without needing to turn a single knob. Use the Mix knob to make your delayed signal as subtle or noticeable as you need. From fully dry to fully wet, and everything in between.  El Capistan’s Repeats knob lets you select just the right amount of repeats — from a single echo for double-tracking delays, to runaway oscillation madness at its upper settings.

Need Some Space?

Like certain echo machines of yesteryear, El Capistan features a finely-tuned spring reverb to add another dimension to your echoes. Use it to add subtle space and dimension to your delays at lower settings, or turn things up a notch for big, splashy waves of old-school spring reverb. Just want reverb? Turn the Mix knob to minimum to hear only your reverberated signal.

Add A Little Movement.

El Capistan captures the nuances of the dozens of moving parts that contributed to the sound of classic tape echoes. A dedicated Wow & Flutter knob adjusts the amount of mechanically related tape speed fluctuations. From the crisp delays of a fully cleaned and serviced machine, to the warbly, pitch modulated echoes of a road worn piece of gear — El Capistan gives you all the vibe and none of the maintenance.

Better With Age.

Our goal with El Capistan was to offer the most authentic tape echo experience in a modern, compact form factor. A component of that was replicating the tonal effects that the tape medium itself can have on your signal depending on the age and condition of the tape itself, as well as taking into account the significant effect of the bias setting of the tape machine. A dedicated Tape Age knob lets you decide whether you want the full bandwidth of brand new, glossy tape — or the warm top end of older well-used tape.  As a part of keeping things simple up-front, we added secondary functions for added control over the tape crinkle and tape machine bias.  The Tape Crinkle secondary function controls the amount and severity of tape irregularities, including friction, creases, splices and contaminants. Go from smooth and well-cared for tape, all the way to tape that’s been chewed and mangled. Just like the real thing, Tape Crinkle characteristics track accordingly to tape speed. While not a characteristic of the tape itself, how much bias signal is added to the tape’s audio signal can make huge tonal differences. By adjusting the Tape Bias secondary function, you can get high-headroom, extra clean, crisp echoes at lower settings, or crunchy, saturated echoes with higher bias levels. Higher bias settings also limit the echo volume, which can be useful at very high Repeats settings when you want to create high feedback and self-oscillation effects while still keeping output level under control. For “optimal” bias, set the knob at approximately 9 o’clock.

Round Things Out.

El Capistan’s Low End Contour secondary function gives you an extra layer of tonal control by shaping the low frequency content of the echo repeats.  At the far left of the control, you get extended low frequency bandwidth for full, deep repeats. As you turn the Low End Contour knob clockwise, low frequencies are gradually filtered from the repeats, giving you the ability to create extremely high-passed echoes at the far end of the knob’s range.

Over And Over Again.

Just like one of our favorite moving head tape echo machines, El Capistan gives you a Sound on Sound mode, but with some cool new features.  When you enter Sound On Sound mode (Single Tape Head, Mode C), the machine is already recording, just like a traditional tape echo machine. We go several steps further by giving you instant tape splice and bulk erase functions. It’s like having a built-in tape-style looper!  To set the length of your tape, press Tap once to set your splice ‘in’ point, and press Tap again to set your splice ‘out’ point. All of the tone shaping knobs are active and affect your loop as it plays back and re-records. Press Tap a third time to completely erase the tape. You get 20 seconds of tape at slow speed, 10 seconds at fast speed.
