Death by Audio

Robot

Name: Robot
Brand: Death by Audio
Price: 320.0 USD
Availability: InStock

$320.00 USD

Sale Out of Stock

FREE 2Day Shipping

USA Free 2 Day Shipping

(Next Day in New England)

Canada 15USD Flat Rate*

Worldwide 30USD Flat Rate*(Wherever you are)

Flat Rate means no additional charge for more than one pedal.

No Hassle Returns

Just let us know within 30 days.

If there's a malfunction, shipping's on us.

Full Policy

Dimensions

Length: 5.87"
Width: 4.72"
Height: 2.62" (including hardware)

Specifications

Power: 9VDC (runs ons a positive ring, negative tip 9V DC adapter or included 9V battery). Note: Requires a dedicated power supply and will not work with any daisy chain power system.

Current Draw: 23 mA

Product variants

Pitch shifter / Octave / Ring Mod / Areggiator / Bit Crusher

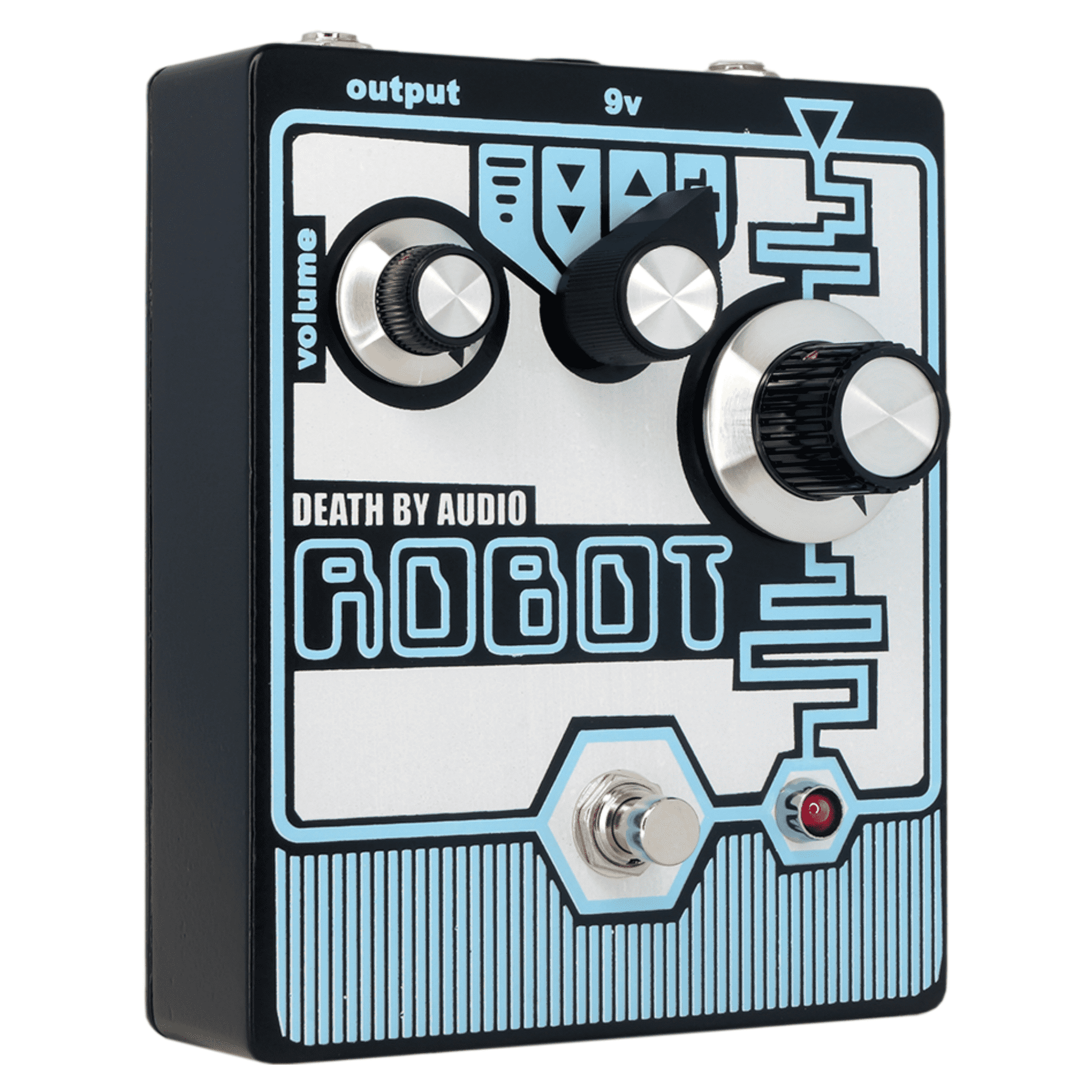

Robot is a low fidelity 8 bit pitch transposer with absolutely no feelings whatsoever. It is completely synthetic and transforms any input into a puree of resynthesized robot jargon. Features bendable super lo-fi fuzz, octave up, octave down, and arpeggiation. All modes are controlled by the Control Knob, which sets the frequency the chip operates at, changing and warping the pitch shifting and aliasing effects.

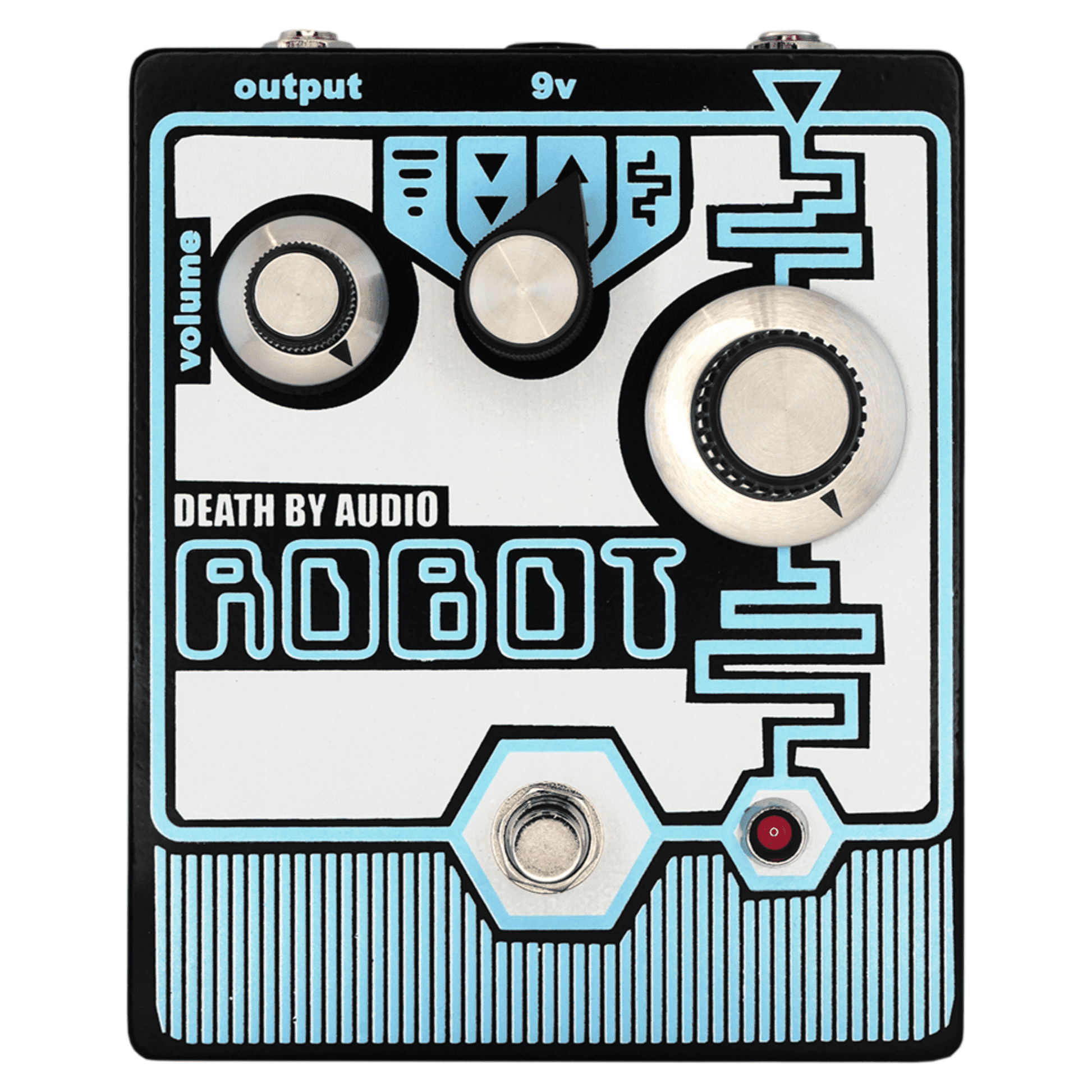

Volume: Controls master volume.

Control Knob: Located on the right-hand side of the pedal. Controls the pitch of the effect. When turned up completely clockwise, it is at its highest pitch. Turning down, counterclockwise, lowers the pitch or speed of the arpeggiator.

Rotary Selector:

Normal: Same pitch with 8-bit digital conversion when the Control Knob is fully clockwise. Turning the Control Knob down bends the pitch lower.

Octave Down: The Control Knob turned fully clockwise yields a nasty octave down sound. Turning the Control Knob down bends the pitch further downwards.
