Strymon
Timeline
Timeline
No reviews
Regular price
$449.00 USD
Regular price
Sale price
$449.00 USD
Unit price
/
per
$449.00 USD
FREE 2Day Shipping
FREE 2Day Shipping
USA Free 2 Day Shipping
(Next Day in New England)
Canada 15USD Flat Rate*
Worldwide 30USD Flat Rate*(Wherever you are)
Flat Rate means no additional charge for more than one pedal.
No Hassle Returns
No Hassle Returns
Pedal Features
Pedal Features
- Hand crafted, studio-class delay algorithms deliver meticulous, detailed and nuanced delay experiences
- Twelve delay machines to choose from: Digital, Dual, Pattern, Reverse, Ice, Duck, Swell, Trem, Filter, Lo-fi, dTape™, dBucket™.

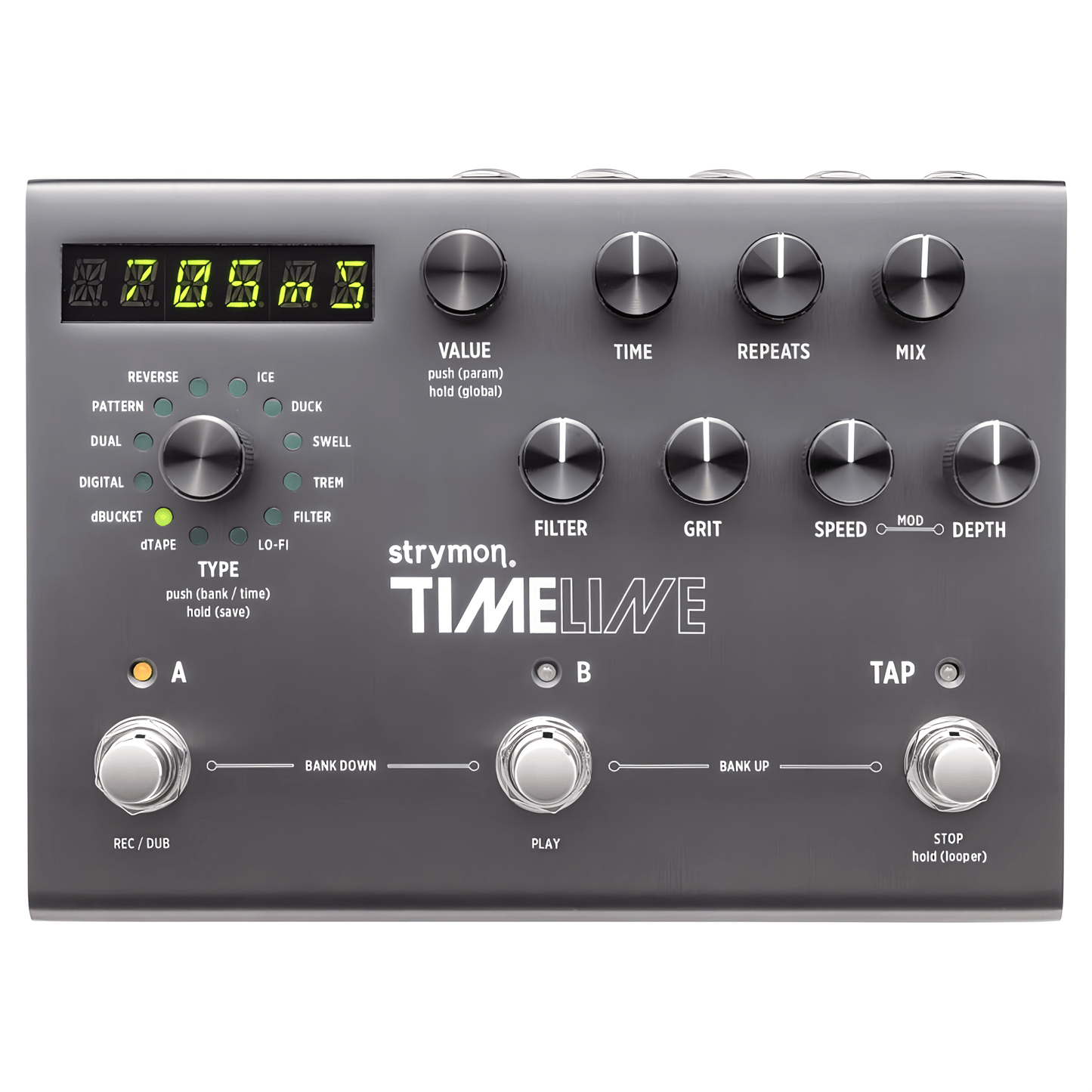

- Seven front-panel tone shaping knobs: Time, Repeats, Mix, Filter, Grit, Mod Speed, Mod Depth
- Additional menu-driven parameters deliver extremely flexible tone shaping options and complete tweakability
- 200 easily accessible and nameable presets, save and recall at the press of a switch
Processor
Processor
- Super high performance DSP in a compact form factor
- 32-bit floating point processing
MIDI Features
MIDI Features
Have a more complex rig? TimeLine offers a complete MIDI implementation to connect to your MIDI gear.
Sync your delay time to MIDI clock.
Remote control of any knob, parameter, or switch.
Select your presets via MIDI. You can even send MIDI messages to the built-in looper.
Specifications
Specifications

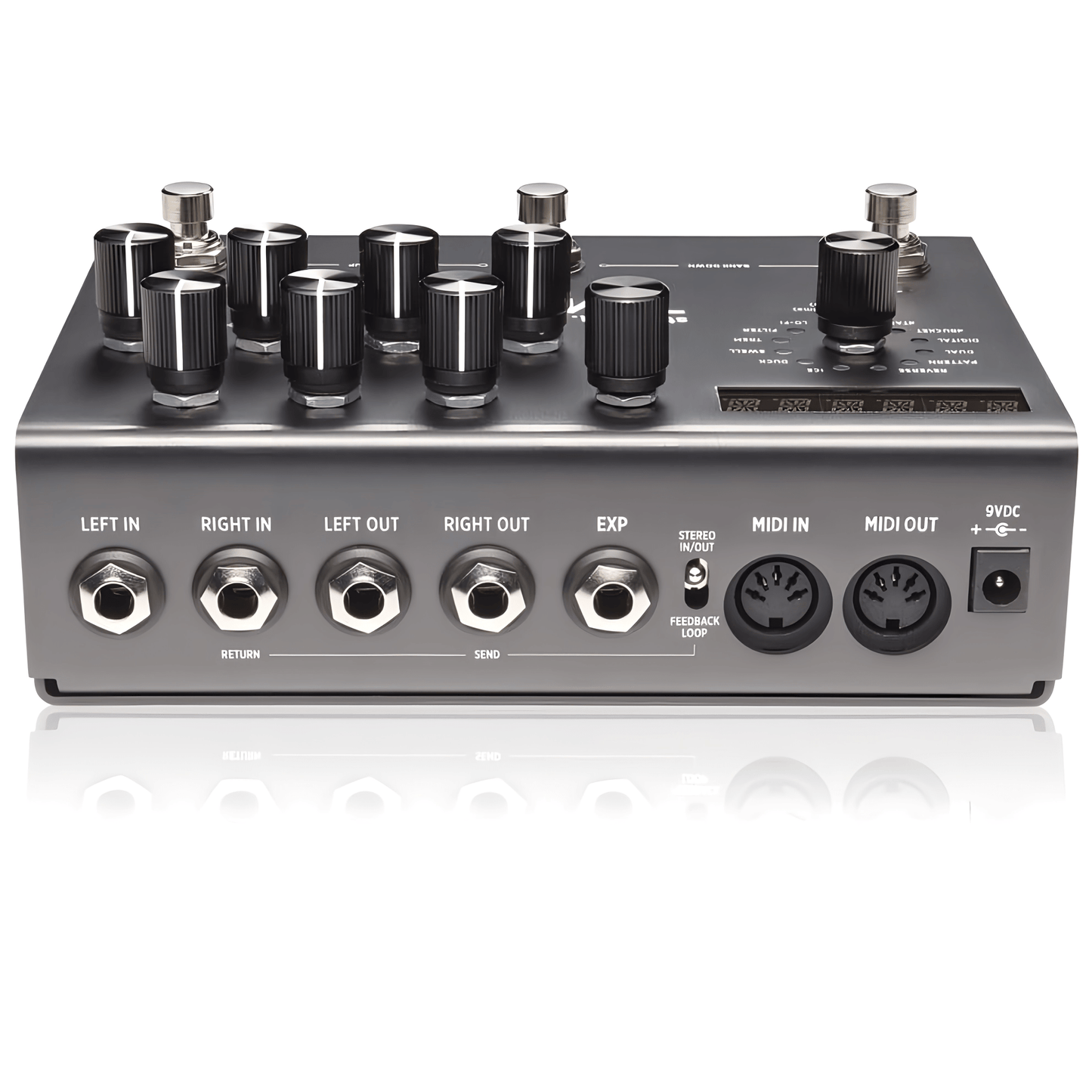

- Stereo input and output
- Expression pedal input with selectable control over knob or combination of knobs, saveable per preset (also configurable as external tap input)
- MIDI input and output
- Switchable I/O configuration: Stereo Out or Mono with Delay Feedback Loop Insert
- Included 9V center-negative power supply (300mA minimum required)Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters
- 115dB typical signal to noise
- Analog dry path for a zero latency dry signal that is never converted to digital
- Premium analog front end and output sectionTrue Bypass (electromechanical relay switching)
- Selectable Trails mode with high quality, transparent Analog Buffered Bypass, saveable per preset
- +/- 3dB Boost/Cut, saveable per preset
- Selectable Tap Subdivision, saveable per preset
- Optional Kill Dry mode mutes dry signal, for use in parallel effects loops
- Optional Global Tap Tempo mode
- Three rugged metal footswitches for preset selection, effect bypass, looper control, and Tap Tempo
- LED display for preset info, BPM/time readout, and extended parameter control
- Multi-color preset LEDs (green for active preset, amber for edited preset)
- Full MIDI implementation allows extended control for those with more complex rigs
- 30-second stereo Looper, routable pre- or post-delay, with MIDI capability.
- Sturdy and lightweight gunmetal gray anodized aluminum chassis, with laser-etched artwork
- Durable black anodized aluminum knobs
- Studio-grade audio input and output jacksDimensions: 6.75″ (171mm) wide, 5.1″ (130mm) deep
- Designed and Built in the USA
Couldn't load pickup availability
Digital Delay
A crystal-clear digital delay that can be endlessly tweaked and enriched with the Filter, Grit, Smear, High Pass, and Modulation controls. A wide range of delay tones can be achieved with this classic “voiced” digital approach. In addition, a non-linear mode allows the repeats to fade more quickly, while still retaining a natural feel.
Dual Delay
Two independent delay lines can be configured in series or parallel (right/left split). The second delay has independent Mix, Repeat and Time values, and can also be set to track the first delay’s knob values.
Pattern Delay
The Pattern machine gives you a variety of multi-tap patterns that span from rhythmic to ambient to percussive and everything in between. Filter, Grit and Mod knobs deliver a wide range of delay experiences.
Reverse Delay
You play frontwards, it repeats backwards. Your playing triggers the delays, producing predictable, repeatable, and extremely useful reverse effects. Add some Smear to soften the attacks—smearing transients while retaining full frequency response.
Ice Delay
The Ice machine slices and dices your input and plays the pieces back with a selectable Interval shift amount—from an octave down to two octaves up, and anywhere in between. You can Blend the ice amount from none to all. Selectable Slice size allows further possibilities, changing the size of audio chunks that get shifted.
Duck
Duck — and cover. You get a ducking delay with adjustable Sensitivity and Release Time, along with a switchable Feedback duck option. This allows for a wide variety of dynamic delay effects.
Swell Delay
Variable swell time allows you to match the swell with the delay time. Turn the Mix to full wet and turn up the repeats for ethereal ambient effects. Adjust the Rise Time to set the time constant for the swell effect. Add some Smear to soften the attacks—smearing transients while retaining full frequency response.
Trem Delay
The Trem delay machine provides you with a synchronized tremolo with Waveshape, Depth and Speed for cool new sounds. Choose from triangle, square, sin, ramp, and saw to vary the delay amplitude.
Filter Delay
The Filter delay gives you a synchronized Filter that can be placed before or after the delay. Wave-shape, Depth, Speed, Resonance, and Filter Location are all adjustable parameters. Choose from triangle, square, sin, ramp, saw, random, up, and down to vary the delay amplitude. Limitless filter possibilities!
Lo-Fi Delay
Crush some bits with the Lo-Fi delay machine. Adjust Bit Depth and Sample Rate while blending the results with the full resolution signal. Select from several hand crafted lo-fi Filters, spanning transistor radios, telephones, phonographic horns, and other “collectibles”. Top it off with our exclusive dVinyl record noise, adding a scratchy record complete with dust and dirt.
dTape Delay
The dTape machine delivers the complete experience of sought-after sliding-head tape echo machines, with every attribute relentlessly studied and faithfully recreated. Full control over Tape Age, Wow & Flutter, Tape Crinkle, Tape Bias, Low End Contour, and Tape Speed.
dBucket Delay
The dBucket machine provides you with a deep and nuanced recreation of analog bucketbrigade style delay types. Two delay time ranges are available, for single or multiple BBD chip delay times. Utilize our exclusive Bucket Loss control, along with dedicated Filter and Mod controls.
